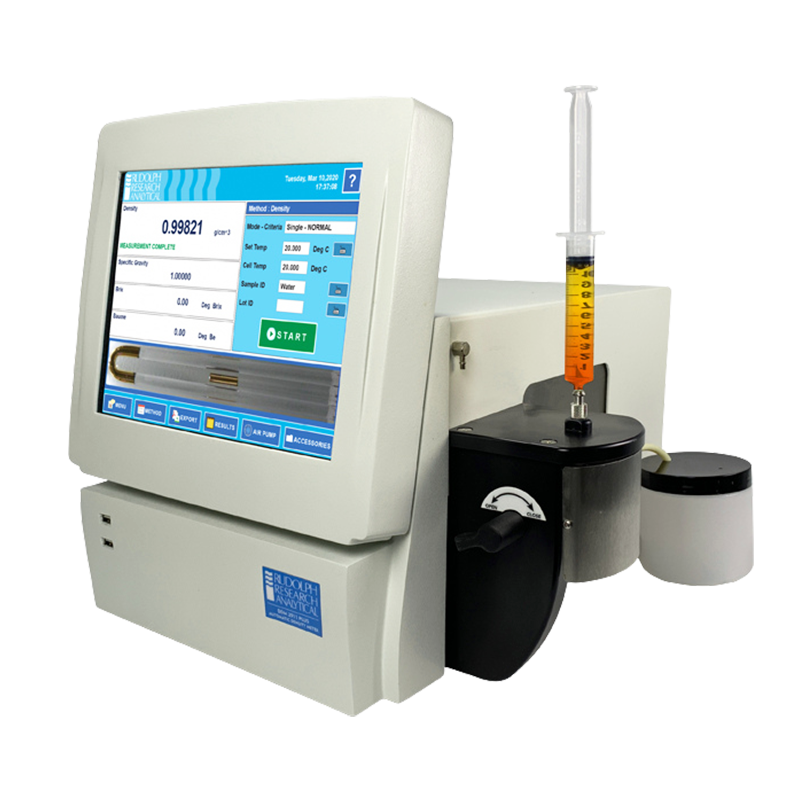

Density Meter (ASTM D4052)
Density Meter Description
The DDM 2911 Laboratory Density Meter is a perfect choice for a pharmaceutical density meter or any lab where high accuracy is required. The 2911 is one of the most capable instruments in the Rudolph DDM series density meter line, offering a wide measurement range, high accuracy, and the on-board range methods and electronic data tracking required in the most demanding laboratories in the world.
For laboratories requiring high performance with an entry-level or intermediate configuration, options like the DDM2909 density meter are also widely utilized. For applications that require rapid field testing alongside benchtop analysis, combining these static instruments with a handheld density meter provides a complete operational workflow.
Designed for the most demanding cGLP/GMP Laboratories, the DDM 2911 Density Meter offers density accuracy to 0.00005 g/cm³. If you work in the Pharmaceutical, Chemical, Beverage, Fragrance, or Petroleum industries and need the highest level of accuracy, the DDM 2911 is a perfect choice for your lab. Rudolph is a longtime participant in ASTM Petroleum Testing and Proficiency Testing Programs. To secure these precise instruments with full support, partnering with a premier Density meter supplier in the UAE. guarantees access to certified installation, calibration, and long-term technical service.
our seamless B2B distribution network extends comprehensive logistics, onsite technical training, and ISO-certified validation support across Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain.
Density Meter Method Compliance
Measure API, Density and Specific Gravity values in accordance with ASTM D1250, ASTM D1475, ASTM D2501, ASTM D4052, ASTM 4806, ASTM D5002, ASTM D5931, ASTM D6448, ISO 12185, ABNT NBR 7148, ABNT NBR 14065, ABNT NBR 15639, GB/T 1884, GB/T 2391. GB/T 2013-2010, GB/T 21862.3, GB/T 29617-2013, IP 365, and DIN 51757
- QC incoming raw materials
- Research new products and additives
- Withstands harsh and heavy use environments
- Calibrate using petroleum standards
Density Meter Features
- 21CFR Part 11 COMPLIANT DENSITY METER FOR PHARMA LABS
- DENSITY METERS FOR THE BEVERAGE INDUSTRY
- Flexible Method Management
- Density Meters from Rudolph Research offer a full view of the U-Tube for effective Bubble Detection
- The Rudolph 2911 Density Meter offers 21CFR Part 11 Instrument Level Compliance
- Oscillating U-Tube with Viscosity Correction and Reference Oscillator
- cGMP/GLP Calibration
- Computer Windows Based Flexibility
- Pharmaceutical Lab Density Meter with Versatile Communication Capability
Density Meter Specifications
| Accuracy | Density: 0.00005 g/cm³ Temperature: 0.02°C |
| Repeatability (Standard Deviation) | Density: 0.000005 g/cm³ Temperature: 0.01°C |
| Resolution (Standard) | Density: 0.00001 g/cm³ Temperature: 0.01°C |
| Resolution (USR) | Density: Up to 0.000001 g/cm³ |
| Density Range | 0 g/cm³ to 3 g/cm³ (32° F – 212° F ) |
| Temperature Range (Controlled via Peltier) | 0°C – 100°C |
| Pressure Range | 0 to 10 bar (145 psi ) |
| Viscosity Correction | Yes, over the entire range |
| U-Tube Video Scanning & Magnification | Three magnified video assisted views of the entire cell are available, in 2x, 6x and a 10x magnifications with video scanning. Images may be saved with results for subsequent review. |
| Automatic Bubble Detection | Automatically warns operator of bubbles |
| Measurement Modes | Continuous, Single, Multiple |
| Measurement Technique | Mechanical Oscillating U-Tube Method |
| Minimum Sample Volume | Approx 1mL (depending on the load option) |
| Wetted Materials | Borosilicate glass, Teflon (PTFE) |
| Operating System | Windows Embedded®; write protected software safe from malware and viruses |
| Measurement Time | Typically 30 – 40 seconds after thermal equilibration |
| Display | Bright 10.4 inch diagonal TFT type LCD with wide viewing angle, anti-glare flat panel touch screen, 300 nits brightness, 800 x 600 pixels, chemical, scratch and spill resistant monitor, the industry’s largest, most flexible, and customizable user interface |
| Communication Interface | 5 USB Ports, 2 RS232 Ports, 2 Ethernet Ports for Network Connection, 1 HDMI, Keyboard Bar Code Scanner, Mouse, Network Capabilities |
| Remote Support | Troubleshooting, Diagnostics, Software Updates available via the Internet |
| Internal Memory | 32 GB Non-removable Compact Flash Allowing Storage of over 100,000 Measurements |
| Operating Dimensions | 18.36” (L) x 11.80” (W) x 13.90” (H) 46.61 cm (L) x 29.97 cm (W) x 35.30 cm (H) |
| Operating Weight | 53 lbs (24 kg.) |
| Shipping Dimensions | 24.5” (L) x 17.5” (W) x 22” (H) 62cm (L) x 44cm (W) x 56cm (H) |
| Power Supply | 100 to 240 VAC; 50 to 60 Hz |
| Power Consumption | 120 Watts at peak |
| Country of Manufacturer and Design / Warranty | United States of America ( U.S.A.) 3 Year US Warranty – 2 Year International *Warranty vary by country ( 1-3 years ) |
Density Meter Applications
- Petrochemical, Research,
- Refineries,
- testing laboratories,
- Paint,
- Grease
- Lubricants
