Cleveland Open Cup Flash Point Tester
Cleveland Open Cup Flash Point Tester Description

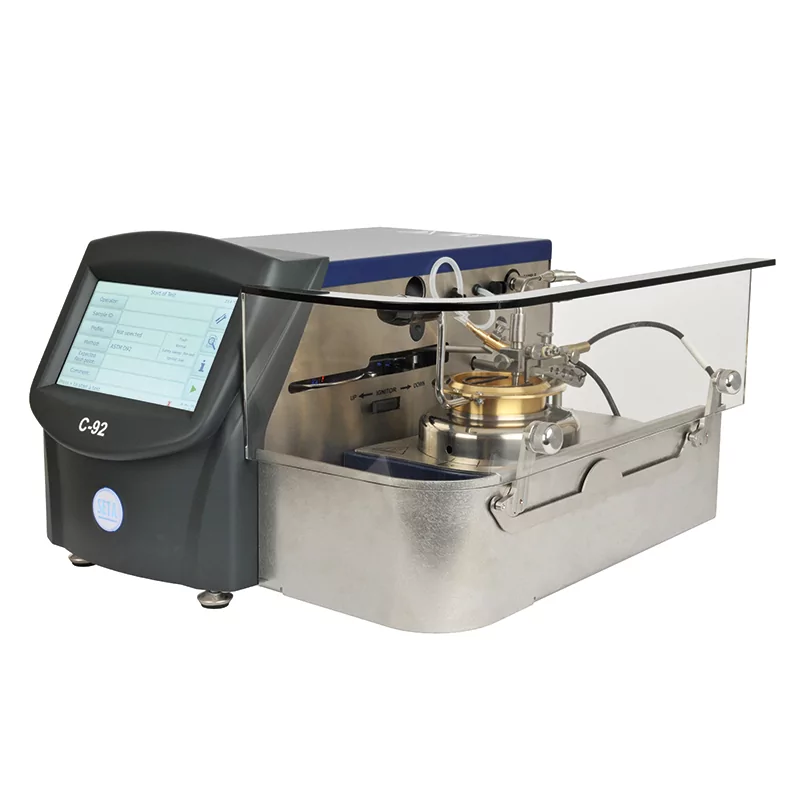

The C-92 Cleveland open cup flash point tester is an automatic bench-top instrument, used to determine flash point and fire point temperatures of products at temperatures up to 400 °C.
The C-92 is controlled through a large colour touchscreen and allows test progress and results to be viewed from across the laboratory if required.
The instrument incorporates a heater, a removable test cup, interchangeable gas and electric hot-wire ignitors mounted on an automatic sweep arm, a platinum resistance thermometer (PRT) to measure the sample temperature, an ionisation ring to detect a flash/fire, a snuffer and a fire extinguisher. A draught screen around the test area ensures accurate results.
Whether you require a heavy-oil analyzer or Small Scale Flash Point (Setaflash) instrumentation for low-volume, rapid testing, our line of equipment brings unparalleled accuracy to your lab. As a leading flash point tester supplier, we proudly deliver and support these precision testing systems to critical industries across the UAE, Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain.
Cleveland Open Cup Flash Point Tester Method Compliance
This advanced system is a cornerstone of global ASTM flash point testing equipment, ensuring exact alignment with strict international standards. While this unit excels at open cup testing, we also supply dedicated D93 flash point tester configurations for closed cup operations.
| DIN 51 376 | Flash And Fire Points by Cleveland Open Cup |
| ISO 2592 | Flash And Fire Points by Cleveland Open Cup |
| AASHTO T48 | Test for Flash and Fire Points by Cleveland Open Cup (ASTM D 92-05a) |
| JIS K2265 | Open cup flash tester according to Cleveland |
| ASTM D92 | Standard test method for flash and fire points by cleveland open cup (fully supported by our core ASTM D92 flash point tester design) |
| IP 36 | Determination of flash and fire points – Cleveland open cup method (ISO 2592:2000) |
| NF T60-118 | The Multiflash-Cleveland fully automates and conforms precisely to national and international Cleveland Open Cup test methods. |
| ASTM D8254 | Standard test method for Flash and Fire Points of Asphalt by Cleveland Open Cup Tester |
Cleveland Open Cup Flash Point Tester Features
- Operator safety
- Ease of use
- Enhanced test throughput
- Precision and accuracy
Cleveland Open Cup Flash Point Tester Specifications
| Ignition system | Electric or gas |
| Flash detection | Ionisation ring |
| Fire detection | Ionisation ring and optical fire sensor |
| Cooling | Fast forced air (integral fan, adjustable) |
| Heating rate | Adjustable fast heating mode (up to 17 °C/min) and standard rate 5.50 °C/min |
| Temperature range | Ambient to 400 °C |
| Internal memory | More than 7 Gb of storage |
| Power | Maximum 600 W, during typical test <100 W |
| Voltage | 100 V to 240 V, 47 Hz to 63 Hz, autosensing |
| Size (HxWxD) | 240 x 385 x 450 mm |
Cleveland Open Cup Flash Point Tester Applications
- Petrochemical
- Research
- Refineries
- testing laboratories
- Paint
- Grease
- Lubricants
