Gum Content Tester
Gum Content Tester Description

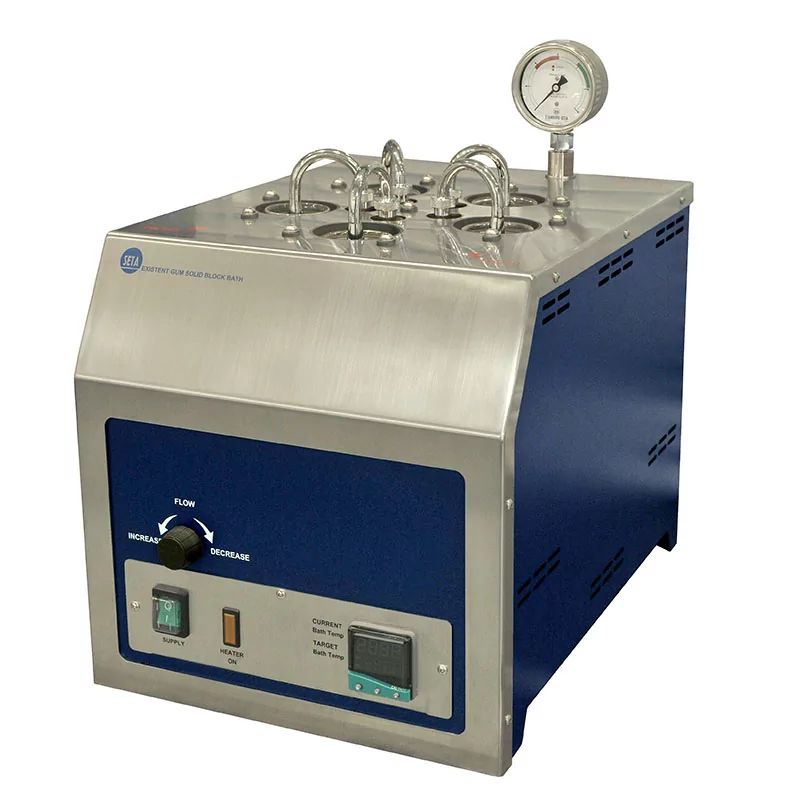

The Existent Gum Solid Block Bath is designed to carry out up to five simultaneous tests for determining existent gum content in fuels by the Jet Evaporation method as per ASTM D381.
The unit comprises a solid block bath with integral steam superheater, removable taper-fit conical steam/air jet adaptors with copper screens, and a steam/air flow control valve and gauge. The bath has five test wells and a thermometer well. Outlets can be individually checked for uniform flow of air or steam. making it a reliable gum content tester.
Gum Content Tester Method Compliance
| DIN 51 784 | Existent Gum in Fuels by Jet Evaporation |
| BS EN ISO 6246 | Petroleum products. Gum content of fuels. Jet evaporation method |
| IP 540 | Determination of the existent gum content of aviation turbine fuel – Jet evaporation method |
| ASTM D381 | Standard test method for gum content in fuels by jet evaporation |
| IP 131 | Standard test method for gum content in fuels by jet evaporation |
Gum Content Tester Features
- Integral steam superheater
- Digital temperature control
- Over-temperature cut-out
Gum Content Tester Specifications
| Ignition system | Electric or gas |
| Flash detection | Thermal |
| Cooling | Forced air (integral fan) |
| Heating Rate | Fast heating rate (>10 °C/min) and standard; 5.5 °C/min; 3 °C/min; 1.3 °C/min; 1 °C/min |
| Temperature range | Ambient +5 °C to 400 °C |
| Internal Memory | 30 programmable test profiles, operator names, test methods and unlimited tests results |
| Fire Detection | Thermal with optional integral Fire Extinguisher |
| Size/Weight | 38.5 x 24 x 50 cm / 25 kg |
| Voltage | 230 Vac +/-15% or 110 Vac +/-15%. Frequency 50/60 Hz. Auto-sensing – no selector switch required |
| CCCN Code | Tariff 90268020 |
Gum Content Tester Applications
- Petrochemical
- Research
- Refineries
- testing laboratories
