Copper Strip Corrosion
Copper Strip Corrosion Test Procedure

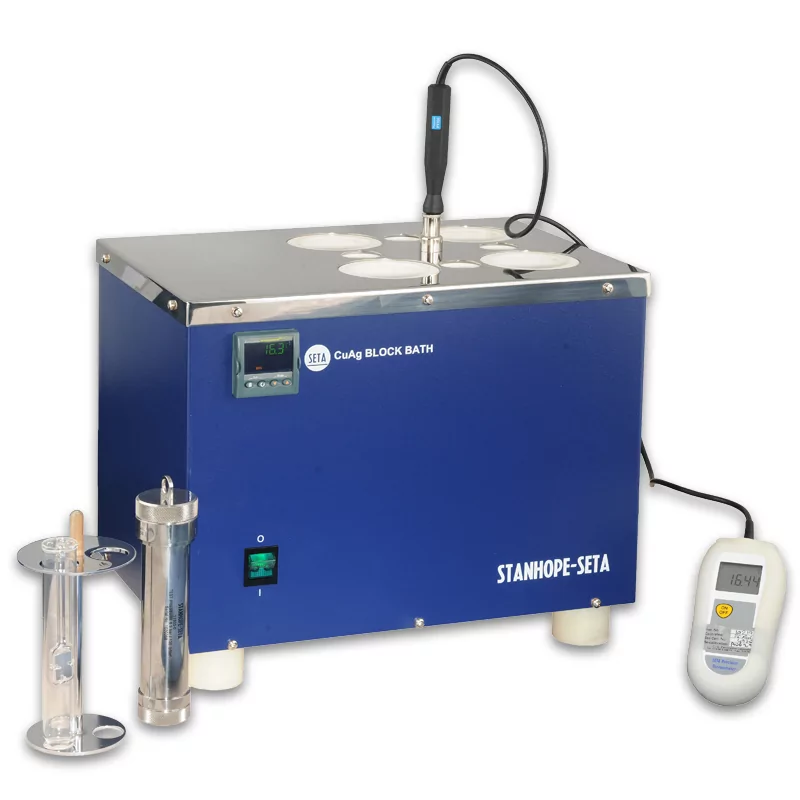

The solid block bath is specifically designed for measuring thin silver strip corrosion to ASTM D7667 and copper corrosion to ASTM D130.
The bath features four test wells to accommodate Corrosion Pressure Vessels (11500-0) and four test tube pre-heating wells for 25 mm diameter x 150 mm Test Tubes (11590-0).
The bath incorporates a centre hole in the block with a protruding aperture on the top cover for mounting a thermometer or digital thermometer probe which can be used to verify the test block bath temperature. The bath is capable of achieving a temperature stability of better than ±1 °C at temperatures between 20 and 150 °C as specified in ASTM D7667 and ASTM D130 test methods.
Copper Strip Corrosion Method Compliance
| ASTM D130 | Standard Test for Corrosiveness to Copper from Petroleum Products by Copper Strip Test |
| ASTM D7667 | Corrosiveness to Silver by Automotive Spark-Ignition Engine Fuel—Thin Silver Strip Metho |
Copper Strip Corrosion Features
- Dry heating for up to four test samples
- Accommodates four 25 x 150 mm test tubes
- Operator selected test set point temperature
- Stability ±0.1 °C
Copper Strip Corrosion Specifications
| Temperature Range | 20 to 150 °C |
| Temperature Stability | ±0.1 °C |
| No of Test Stations | 4 |
| Voltage | 220/240 V 50/60 Hz |
| Size (HxWxD) | 31 x 37 x 26 cm |
| Weight | 31 kg |
| Power | 2 kW |
| CCCN Code | Tariff 84198998 |
Copper Strip Corrosion Applications
- Petrochemical, Research,
- Refineries,
- testing laboratories,
- Paint,
- Grease
- Lubricants
