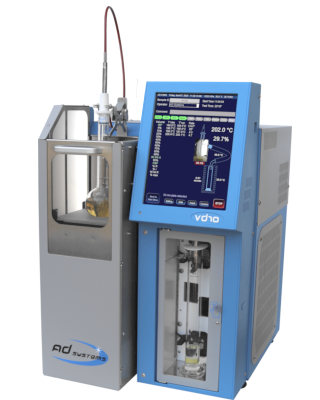

VD10 Video Distillation
VD10 Video Distillation Description
The Video Distillation VD10 revolutionizes distillation testing by bringing unmatched automation and precision to the analysis of atmospheric distillation of petroleum products.
Powered by innovation, the VD10 analyzer revolutionizes this routine analysis of petroleum products by providing unparalleled automation and precision.
The powerful algorithm assisted by video camera (patent pending) analyzes in real time the boiling behavior of the sample in the flask during the distillation run and applies optimal heating to strictly respect conditions of the chosen method.
As an experienced manual distillation operator, visual monitoring allows the VD10 to detect boiling changes early enough to anticipate the appropriate heating regulation to reach IBP, 5% in given time, and the distillation rate control. No need for programming or optimization, the video distillation test is perfect from the first try even for unknown or difficult samples like biofuels. This advanced technology is fully backed by a certified VD10 Video Distillation Supplier dedicated to supporting laboratories and refineries throughout the UAE, Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain.
VD10 Video Distillation Method Compliance
The system is fully compliant with leading international standards, notably serving as a premier VD10 ASTM D86 testing solution.
ASTM D86, D850, D1078
ISO 3405, ISO 918
IP 123, IP 195
DIN 51751
JIS K2254
GOST 2177
VD10 Video Distillation Features
The VD10 Automated Video Distillation system is the most advanced distillation instrument available today. Developed by AD Systems, the original imaging system makes the VD10 truly automatic distillation apparatus not requiring any programming, drastically reducing operator time.
High quality components, precise sensors and robust construction assure high reliability, heavy-duty use with minimum maintenance.
User friendly interface contains all necessary features for test traceability, quality assurance, diagnostics, communication and safety.
VD10 Video Distillation Specifications
| Technical Specification | Description |
| Test method | ASTM D86, D850, D1078, IP 123, IP 195 DIN 51751, ISO 3405, GOST 2177, JIS K2254 |
| Vapor Temperature | Pt100 class A with 10 points embedded calibration data (Factory & User) Automatic probe ID detection. Range: 0 – 450°C, accuracy 0.1°C |
| Heater | Low mass/low voltage heater. Video camera assisted algorithm calculates optimum heating in real-time. Distillation range: 2-10 ml/min Automatic heater lift. Specially designed fan for fast cooling. |
| Condenser | Hybrid: Solid state/liquid cooled condenser. Sealed system for long life operation. Very fast temperature stabilization at setpoint in the range of 0 – 65 °C |
| Receiver | Homogeneous temperate receiver chamber in the range 10 to 45°C for groups 1 to 4 (range 0°C to 45°C is technically possible) Precise optical volume measurement not affected by “smoky” sample, accuracy 0.1 ml Normalized to 100% charge volume. |
| Ambient sensors | Built-in barometric presure sensor 50 to 110 kPa, accuracy 0.1KPa Ambient temperature and humidity sensors supplied in standard |
| User interface | Full-color touch screen; multilanguage; Smart operator assistance features |
| Communication | USB, RS232, Ethernet, Wireless (Wi-Fi) |
| Fire safety | UV sensor for fire detection. Built-in fire extinguisher manifold. External alarm connection. |
| Emission reduction | VOC extraction included in standard |
| Electrical | 100-240 VAC 50/60 Hz |
| Physical | (WxDxH) 42cm x 48cm x 63cm; weight: 50 Kg |
| Accessories | Dry point kits; printer; bar code reader |
| Operation conditions | Temperature 10°C – 35 °C Humidity up to 90%, non-condensing |
VD10 Video Distillation Applications
- Gasoline
- Refineries
- Special fuels
- Pipeline and terminals
- Military fuel testing
- Jet fuel testing
