Powerful Gas Analysis, Minimal Footprint

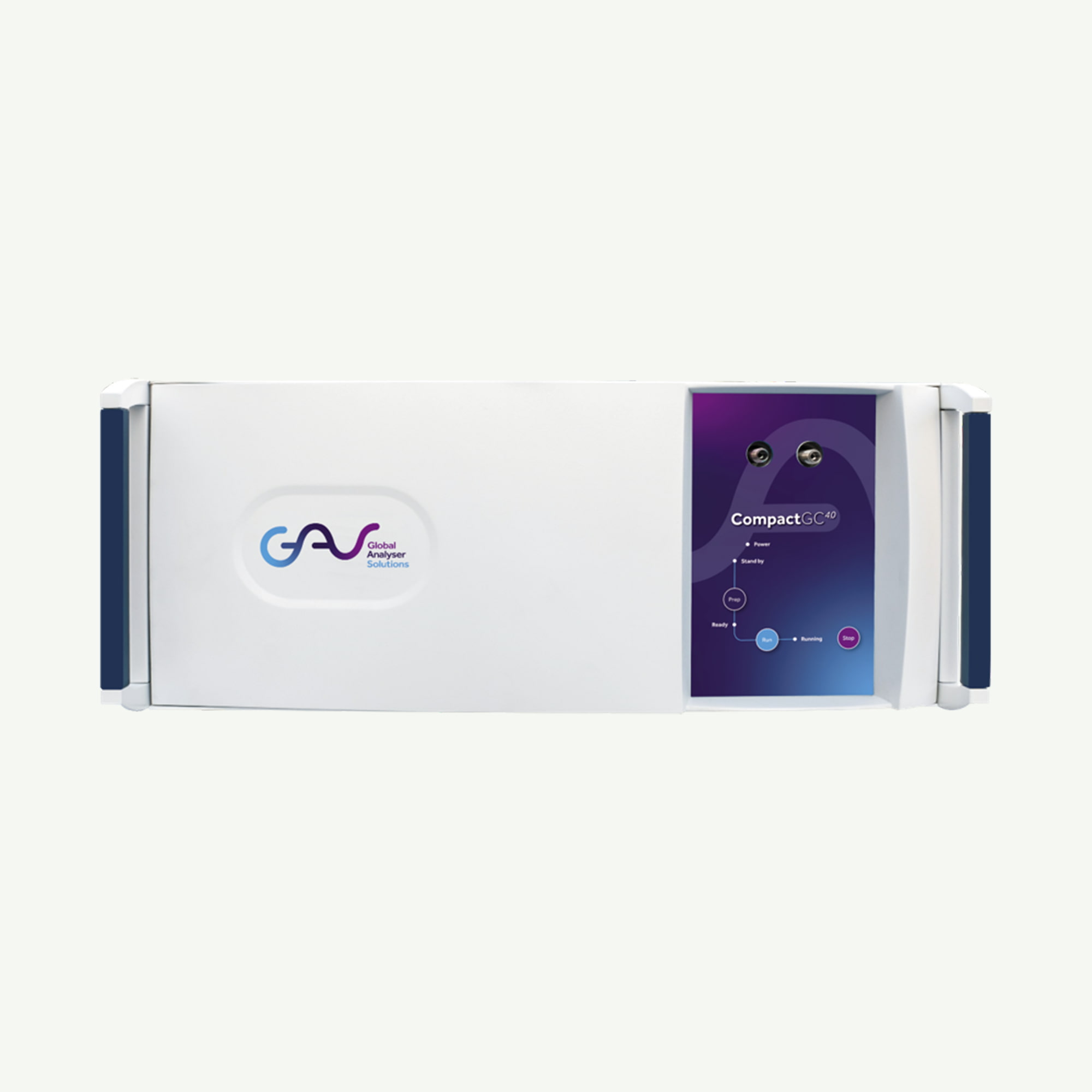

The CompactGC4.0 brings high-performance Gas Analysis to your lab in a sleek, space saving design in the industry standard 19” rack. Offering up to four independent analysis channels and a wide variety of detectors, it delivers outstanding flexibility to meet diverse application needs.

FAST – get instant insights

CompactGC4.0 delivers fast and reliable chromatographic results, with typical runtimes ranging from 2 to 120 seconds. This enables precise monitoring of chemical processes and efficient execution of analytical experiments. With run time equal to cycle time, the system is instantly ready for the next analysis – ideal for high-throughput environments where speed and accuracy are critical.

Specifications:

1 – 4 Analysis Channels

Valve oven:

• independently heated, 40-150 °C
• max 3 valves, extendable up to 4/5 valves,
• for sample introduction or column switching
• diaphragm valves with internal purge or rotary valves

Column ovens:

• Independently heated
• Up to 3
• Isothermal oven: 40-250 °C
• Programmable oven: 40-350 °C.
  Maximum heating rate: 500 °C/min

Detectors:

• TCD, FID, PDD, PED, PID, PFPD, MS, VUV LUMA

Columns

• Capillary 0,32/0,25 /0,15mm ID and smaller
• Wide bore MXT 0.53mm ID
• Micro packed 1/16” OD
• Packed 1/8′ OD

Sampling

• Max. 21 bar (depending on used valve)
• Inlet connection (to GSV) : max. 150 °C
• Inlet connector size: 1/8” Swagelok,
• Injection volume: 0.06 ul to 5ml (gas sampling loop)
• Vacuum sampling option for low pressure/small available volume (only 1 ml sample needed)

Thermal Desorption Option

• Peltier cooled trap
• Temperature range -10 – 350 °C
• Inert glass trap with multibed adsorbents
• Mass Flow Controller for precise sample loading

Repeatability

• 0.2% RSD or better (n=10, Ethane, TCD detection)

Data communications

• LAN for GC parameter control and data transfer
• (Chromeleon, OpenLab/EZChrom); GC editor available
• 8 * External events 24V (valve control)
• 4 * SSR output
• 24 VDC
• 3 * Digital input (remote start-stop-prep)

Environmental conditions

• Ambient operating temperature: 5-45 °C
• Ambient operating humidity: 5-95 %, (non-condensable)

Dimensions:

• 19” standard enclosure, 4HE
• 45 x 18 x 55 cm (w*h*d)
• Weight: 22 kg (2 ch. Instrument)

Power:

• 100-240V DC, 47-63 Hz, 12A max

Heated zones:

• Up to 10

Electronic Gas Control

• Connection: 1/8” Swagelok
• Max 7 modules; up to 14 channels
• Max inlet pressure 1000kPa
• Max outlet pressure 350/700 kPa
• Max splitflow: 100 ml/min
• Carrier gas He, N2, Ar. H2 with safety sensor
• Detector gas depending on detector
