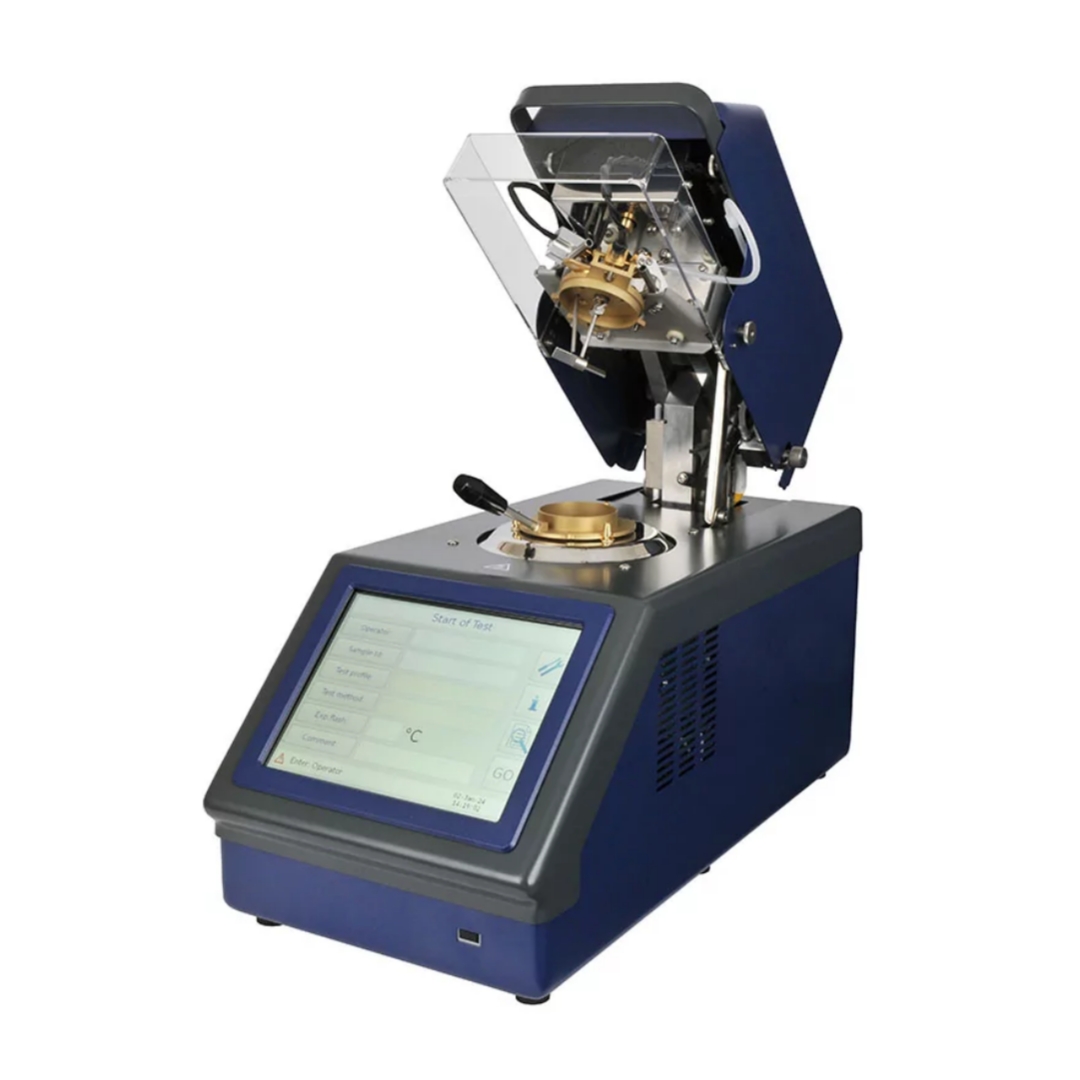

Automated Pensky-Martens Closed Cup Flash Point tester
Closed Cup Flash Point Tester Description
The PM-93 is a fully automated Pensky-Martens closed cup flash point tester which combines strict method compliance with the newest control technology and safety systems to provide the ultimate level of fast, accurate and safe analysis.
You can determine flash points up to 400 °C using either standard mode for where the flash point is known or search mode for when it is not.
Once complete, the Flash point graphically displays results on the screen. You can save results to the internal memory upto 30000 , email the results, export results to a USB, or transfer results via QR code.
SQC software analyses results, calculates mean, standard deviation, standard error and repeatability and plots results in accordance with ASTM D6299.
Closed Cup Flash Point Tester Method Compliance
| BS EN ISO 2719 & BS 2000-34 | Methods of test for petroleum and its products. Flash point by Pensky-Martens closed tester |
| ASTM D93 | Standard test methods for flash-point by Pensky-Martens closed cup tester |
| IP 34 | Determination of flash point – Pensky – Martens closed cup method (ISO 2719:2002) |
| ASTM D8175 | Standard Test Method for Finite Flash Point Determination of Liquid Wastes by Pensky-Martens Closed Cup Tester |
| SW-846 1010B | Test Methods for Flash Point by Pensky-Martens Closed Cup Tester |
Closed Cup Flash Point Tester Features
- Operator safety:
- Ease of use:
- Enhanced test throughput:
- Precision and accuracy:
The ‘SafeFlash’ fire extinguisher is a factory fit accessory and complies with ISO 2719.
Closed Cup Flash Point Tester Specifications
| Ignition system | Electric or gas |
| Flash detection | Thermal |
| Cooling | Forced air (integral fan) |
| Heating Rate | Fast heating rate (>10 °C/min) and standard; 5.5 °C/min; 3 °C/min; 1.3 °C/min; 1 °C/min |
| Temperature range | Ambient +5 °C to 400 °C |
| Internal Memory | 30 programmable test profiles, operator names, test methods and unlimited tests results |
| Fire Detection | Thermal with optional integral Fire Extinguisher |
| Size/Weight | 38.5 x 24 x 50 cm / 25 kg |
| Voltage | 230 Vac +/-15% or 110 Vac +/-15%. Frequency 50/60 Hz. Auto-sensing – no selector switch required |
| CCCN Code | Tariff 90268020 |
Closed Cup Flash Point Tester Applications
- Petrochemical
- Research
- Refineries
- testing laboratories
- Paint
- Grease
- Lubricants
