Viscometer ( ASTM D445 )
Viscometer ( ASTM D445 ) Description

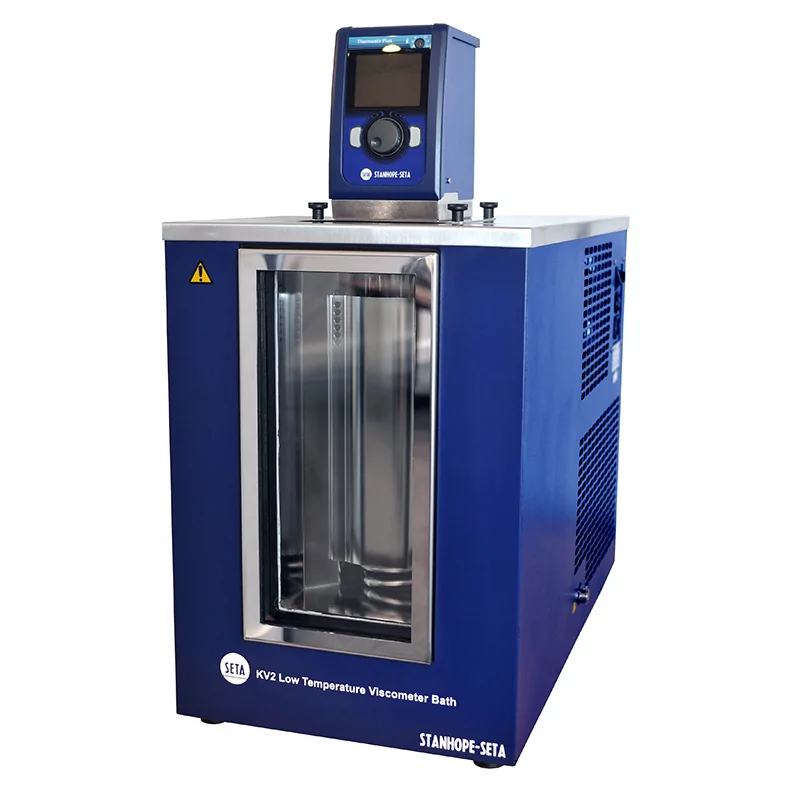

The KV-2 is a two-place low-temperature viscosity bath designed to achieve ultra-high stability in the temperature range of +20 °C to -40 °C. The bath offers high stability of ±0.01 °C at -20 °C. Temperature is measured by a PT100 probe, while a twin display shows the current and set temperature.
This highly efficient automatic viscometer system features a small footprint and is ideally suited for busy laboratories. It is fully self-contained and requires no external chillers or connections. A heated top plate and viewing window prevent condensation and ice formation. The easy-to-use controller features large 13 mm digits, and high-intensity, long-life ultra-bright LED lighting ensures clear bath visibility at all times. When configured with automated timing systems, it operates as a high-precision automatic kinematic viscometer, delivering reliable and repeatable testing cycles. For laboratories seeking this state-of-the-art testing technology, working with an established automatic viscometer supplier ensures complete procurement support and technical service across the UAE, Saudi Arabia, Qatar, Kuwait, Oman, and Bahrain.
Viscometer ( ASTM D445 ) Method Compliance
The apparatus is engineered to provide precise measurement capabilities in strict accordance with standard test procedures, operating as a fully compliant ASTM D445 Viscometer solution. It conforms to the following international standards:
| BS 188 | Methods for the determination of the viscosity of liquids |
| ASTM D446 | Standard specifications and operating instructions for glass capillary kinematic viscometers |
| IP 71 | Determination of kinematic viscosity |
| ASTM D445 | Method for Kinematic Viscosity of Transparent and Opaque Liquids |
| BS 2000-71-2 & ISO 3105 | Methods of test for petroleum and its products. Kinematic viscosity. Specifications and operating instructions for glass capillary kinematic viscometers. |
Viscometer ( ASTM D445 ) Features
- Temperature range -40°C to +20°C
- High stability ±0.01 at -20°C
- Accommodates up to 2 standard viscometer tubes
- Illuminated Bath
- Insulated and heated viewing window
- Heated top plate
Viscometer ( ASTM D445 ) Specifications
| Temperature range | -40 to +20 °C |
| Temperature stability | ±0.01 at -20 °C |
| Tube capacity | up to 2 |
| Bath fluid | Methyl Alcohol or Denatured Ethyl Alcohol |
| Bath capacity | 7 litres |
| Refrigerant | R452a |
| Voltage | 220/240 V 50/60 Hz |
| Power | 2.7 kW |
| Size (HxWxD) | 750 x 370 x 700 mm |
| Weight | 56 kg |
Viscometer ( ASTM D445 ) Applications
- Petrochemical, Research,
- Refineries,
- testing laboratories,
- Lubricants
