Oxidation Stability Tester
Oxidation Stability Tester Description

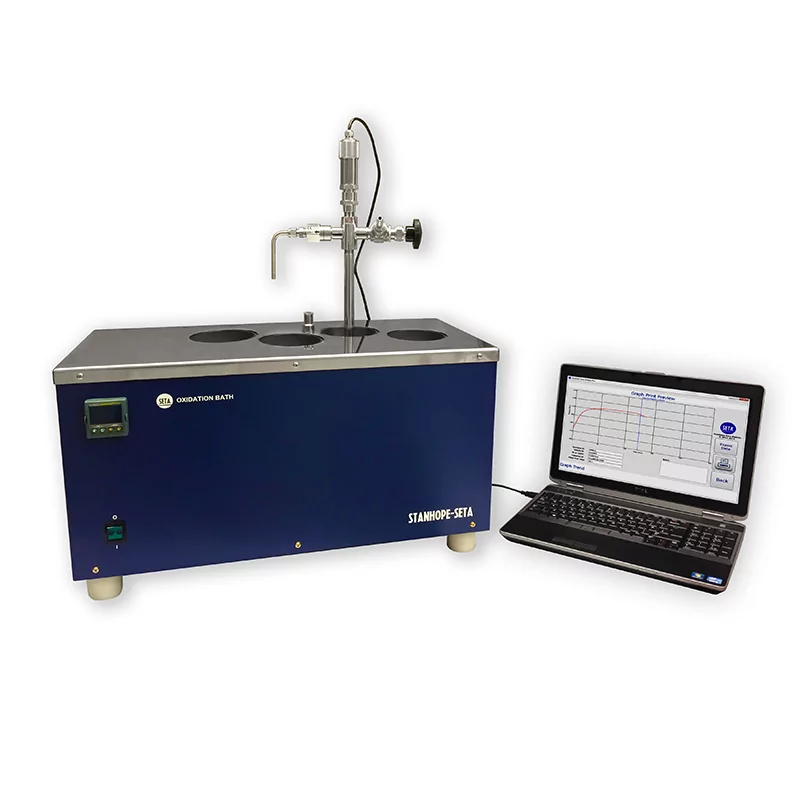

The Auto-Oxi control system provides automatic monitoring of up to four pressure test vessels and is designed for use with all water or dry block temperature baths that conform to the test method specifications.
High quality pressure transducers (not included) and system components ensure reliable operation and fully traceable results.
The Auto-Oxi system is supplied programmed with pressure / time test profiles for ASTM D525, IP 40 and ISO 7536 allowing rapid test selection and start. Custom test profiles, sample and operator identities are easily programmed.
Oxidation Stability Tester Method Compliance
| IP 40 | Determination of oxidation stability of gasoline – Induction period method |
| ASTM D525 | Standard test method for oxidation stability of gasoline (induction period method) |
| BS EN ISO 7536 & BS 2000-40 & ISO 7536 | Methods of test for petroleum and its products. Petroleum products. Determination of oxidation stability of gasoline. Induction period method |
Oxidation Stability Tester Features
- Suitable for use with a range of pressure vessels
- Incorporates purge and leak test
- Automatic breakpoint determination
- Graphical display
- Connects to Seta Pressure Transducers via USB hub
- Supplied with Digital USB thermometer
- Connects to a Personal Computer via a USB cable
Oxidation Stability Tester Specifications
| Temperature range | Ambient +5 °C to 150 °C |
| Stability | ±0.05 °C |
| Bath type | Oil filled |
| Bath capacity | 35 litres |
| Power | 1.5 kW |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Size (HxWxD) | Bath: 64 x 36 x 33 cm Oxflo Control Unit: 46 x 35 x 26 cm |
| Weight | Bath: 15 kg Oxflo Control Unit: 21 kg |
Oxidation Stability Tester Applications
- Petrochemical, Research,
- Refineries,
- Testing laboratories,
