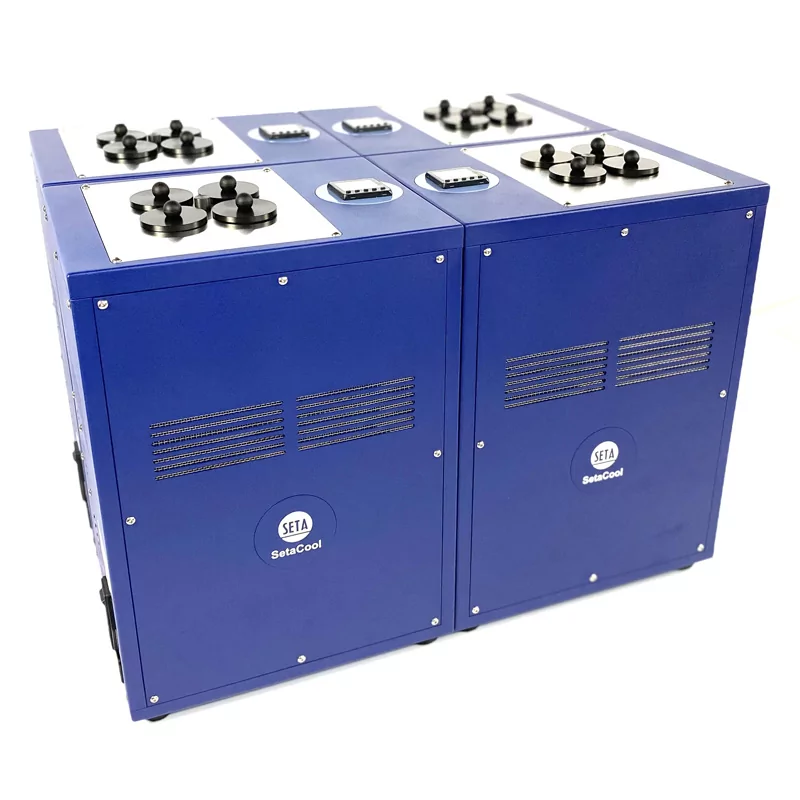

Cold Filter Plugging Point Tester ( CFPP )
CFPP Product Description
The Cool-16 is designed to provide fast, accurate and precise determination of Cloud Point, Pour Point and Cold Filter Plugging Point of petroleum products, diesel and cooling fuels to -78 °C.
Four independent units, each with four test jackets allows for easier maintenance and servicing. The instrument features a built in cooling system and dry block bath which means no external cooling medium is required, whilst a built in heated top plate prevents ice formation.
A state of the art cooling system eliminates the use of compressors and HFC (greenhouse gas) or flammable refrigerants, providing a safe and environmentally sustainable solution.
CFPP Method Compliance
| ASTM D5853 | Standard test method for pour point of crude oils |
| IP 309 | Diesel and domestic heating fuels – Determination of cold filter plugging point |
| ASTM D6371 | Standard test method for cold filter plugging point of diesel and heating fuels |
| IP 219 | Determination of cloud point |
| ASTM D97 | Standard test method for pour point of petroleum products. |
| ASTM D2500 | Standard test method for cloud point of petroleum products and liquid fuels |
| IP 15 | Petroleum products, determination of pour point. |
| IP 441 | Determination of the pour point of crude petroleum. |
| BS 2000-15 & ISO 3016 | Methods of test for petroleum and its products. Determination of pour point |
| BS EN 23015 & BS 2000-219 & ISO 3015 | Petroleum products. Determination of cloud point. |
| BS EN 116 & BS 2000-309 | Diesel and domestic heating fuels. Determination of cold filter plugging point. Stepwise cooling bath method |
CFPP Product Features
The SetaCool-16 is operated via a simple to use digital controller and consists of a dry block bath with four units x four test jackets. The temperature is set and sample is cooled as specified by the test method. A thermometer well is used to verify the bath temperature is correct. Test results are observed as specified by the test method.
For safety, the SetaCool-16 consists of a heated top plate to prevent condensation and ice forming when the bath is cooling.
CFPP Product Specifications
| Number of test jackets | 4 places x 4 units |
| Cooling temperature range | Adjustable between Ambient to -78 °C with PID control |
| Temperature stability | +/- 0.2 °C or better |
| Temperature display resolution | 1 decimal place |
| Power | 100 V to 240 Vac 50/60 Hz |
| Size (HxWxD) | Individual unit: 45 x 32 x 24.9 cm Four unit size: 45 x 64 x 49.8 cm |
| Weight | Individual unit: 19.4 kg |
| CCCN Code | Tariff 90262020 |
CFPP Product Applications
- Petrochemical, Research
- Refineries
- testing laboratories
- Paint
- Grease
- Lubricants
