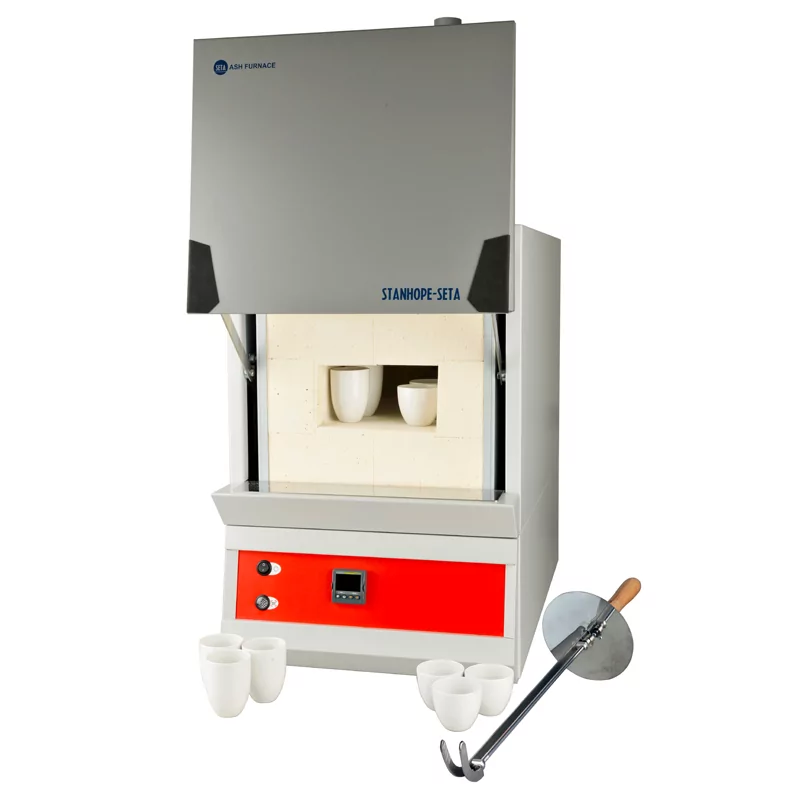

Ash Content Furnace (ASTM D482 )
Ash Content Furnace Description
The Ashing Furnace has a maximum temperature of 1100 °C, it incorporates a pre-heated airflow system and extended chimney.
The furnace is supplied with an Inconel tray complete with detachable handle, it features a door safety power cut-off switch as well as over-temperature cut out protection. The chambers of the furnace are ceramic muffles wound with resistance wire.
The digital temperature controller uses (Proportional Integral Derivative) temperature control to give excellent temperature control when properly set. This type of control uses a complex mathematical control system to adjust the power being sent to the elements and to hold the furnace at the desired temperature.
Ash Content Furnace Method Compliance
| ASTM D482 | Standard test method for ash from petroleum products |
| ASTM D874 | Sulfated Ash from Lubricating Oils and Additives |
| IP 163 | Determination of Sulphated Ash |
Ash Content Furnace Features
- Re-heated airflow system and extended chimney
- Max temperature 1100 °C with over-temperature cut-out
- Door safety power cut off switch
Ash Content Furnace Specifications
| Capacity | 7 litres |
| Chamber size (HxWxD) | 9 cm x 17 cm x 44.5 cm |
| Power | 3.9 kW |
| Voltage | 220/240 V, 50/60 Hz |
| Weight | 63 kg |
| CCCN Code | Tariff 85142010 |
| Capacity | 7 litres |
| Chamber size (HxWxD) | 9 cm x 17 cm x 44.5 cm |
| Power | 3.9 kW |
| Voltage | 220/240 V, 50/60 Hz |
| Weight | 63 kg |
| CCCN Code | Tariff 85142010 |
| Capacity | 7 litres |
| Chamber size (HxWxD) | 9 cm x 17 cm x 44.5 cm |
Ash Content Furnace Applications
- Petrochemical, Research,
- Refineries,
- testing laboratories,
- Lubricants
