Demulsibility
Demulsibility Product Description

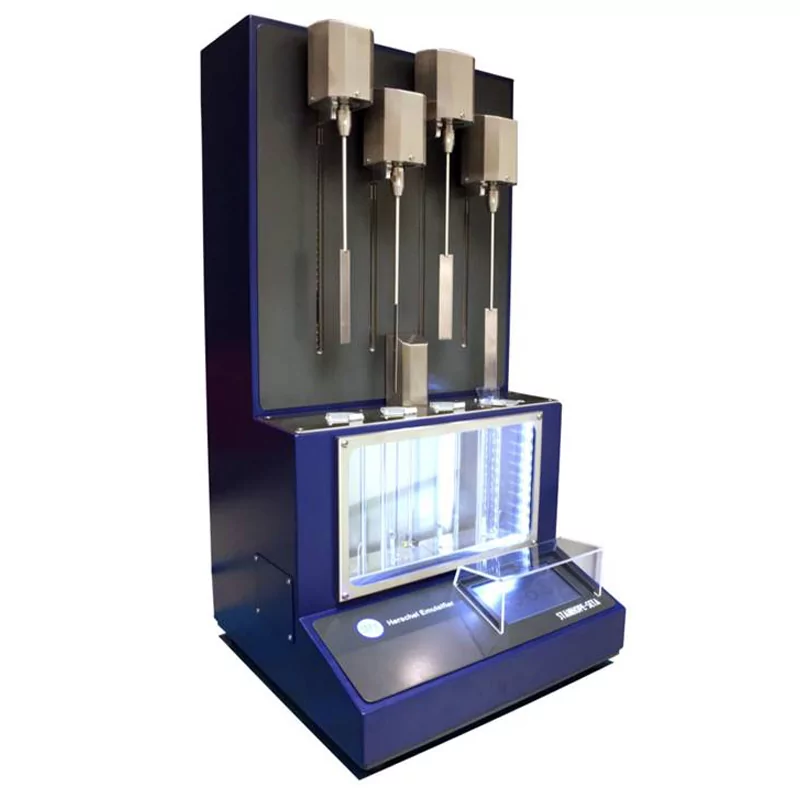

The Herschel Emulsifier is a compact and efficient benchtop instrument designed to measure the ability of petroleum oils and synthetic fluids to separate from water.
The instrument incorporates 4 test stirrers, with independent control and motorised raising and lowering. Samples can be tested simultaneously or individually to suit laboratory requirements.
Test cylinders are located in a temperature controlled bath with an adjustable set point of either 54 or 82°C, in accordance with ASTM test methods.
A large LCD touch screen display is used to initiate test and provides automated sequencing with an audible and visual reminder at each recording interval.
Demulsibility Method Compliance
| ASTM D1401 | Standard test method for water separability of petroleum oils and synthetic fluids |
| ISO 6614 | Water Separability of Petroleum Oils and Synthetic Fluids |
| IP 412 | Petroleum products – Determination of water separability of petroleum oils and synthetic fluids |
Demulsibility Features
- Multiple operator safety features
- Motorised raising and lowering
- Automated test sequence
- Intermediate scraping position
- Inegrated timing
- Easy handling and removal of sample
- No removal of the paddles required
- Guaranteed paddle rotation speed
- Non-reflective enhanced LED lighting
- Large viewing window
- Large LCD touchscreen display
- Small footprint
- Intuitive software package
Demulsibility Specifications
| Bath Volume | 5 litres |
| Bath Liquid | Water or white oil |
| Sample Size | 40ml oil, 40ml distilled water, 1% sodium chloride solution or synthetic seawater |
| Temperature range | 54°C and 82°C |
| Bath Temperature Stability | ±1°C |
| Stirrer Speed | 1500 ± 15 rpm |
| Voltage | 110 Vac, 50/60 Hz 240 Vac, 50/60 Hz |
| Display | LCD touchscreen |
| Size (HxWxD) | 890 x 450 x 450 mm |
| Weight | 49.5 kg |
| CCCN Code | Tariff 90318080 |
Demulsibility Applications
- Petrochemical, Research,
- Refineries,
- testing laboratories,
- Grease
- Lubricants
