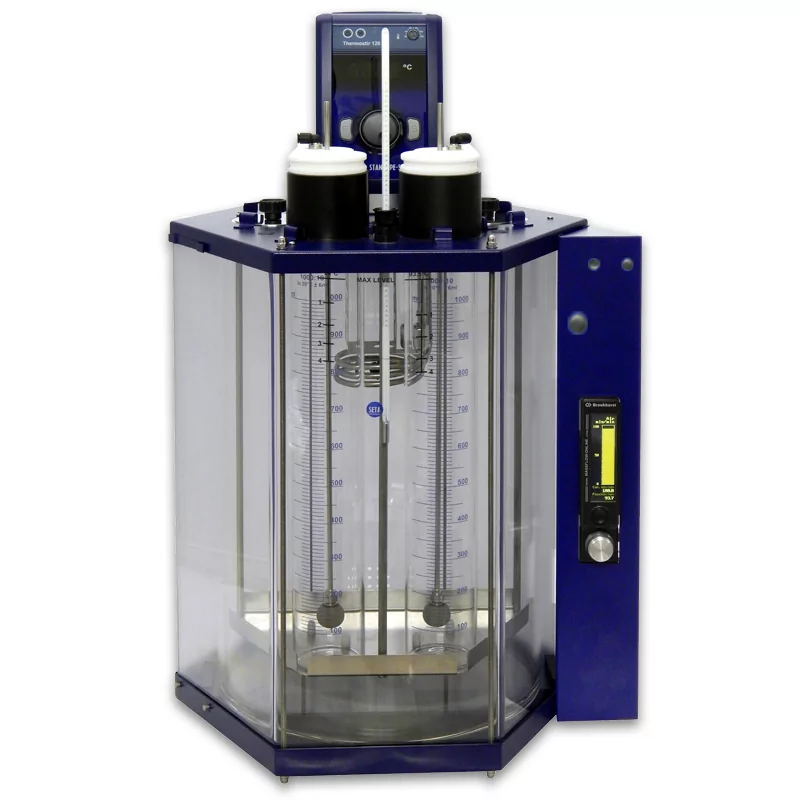

Setafoam Dual Twin Foam Test Baths
Setafoam Dual Twin Foam Test Baths Description
These pair of highly transparent water baths are for detecting undesirable foaming characteristics in lubricating oils, which could cause inadequate lubrication, overflow and cavitation.
The instrument comprises a high temperature (normally 93.5 °C) and a low temperature (normally 24 °C) bath, each with the capacity to hold four 1000 ml graduated glass cylinders.
Each bath assembly comprises an inner glass bath contained in a polycarbonate safety vessel, a top mounted thermostir unit.
The bath has integral back-lighting with an opaque reflector which aids sample visibility and foam measurements. In addition, the low temperature bath has a cooling coil for use when the laboratory ambient temperature exceeds the required bath temperature, and two air normalising coils to cool the air emerging from the high temperature bath test cylinders prior to passing to external volume meters.
Setafoam Dual Twin Foam Test Baths Method Compliance
| ISO 6247 | Determination of foaming characteristics of lubricating oils |
| IP 146 | Determination of foaming characteristics of lubricating oils |
| ASTM D892 | Test method for foaming characteristics of lubricating oils |
Setafoam Dual Twin Foam Test Baths Features
- Suitable for use with steam supply in conformity with the relevant test
- Up to two simultaneous tests per bath
- Two pre-heating stations per bath
- Two integral normalising coils
- Local verification of the stones possible using the verification kit
Setafoam Dual Twin Foam Test Baths Specifications
| Outer | Polycarbonate |
| Inner | 28 litre, borosilicate glass |
| No of Baths | 2 |
| No of Cylinders per bath | 4 (2 per bath supplied) |
| Cylinders | 1000 ml, borosilicate glass, graduated |
| Diffuser | Mott or Norton Stone |
| Flowmeters | 2 per bath, 94 ±5 ml/min |
| Control Units | Thermostir, 1 per bath |
| Temperature range | Ambient to 100 °C ±0.5 °C |
| Supply Voltage | 110/120 V, 60 Hz or 220/240 V, 50/60 Hz |
| Power | 3kW |
| Size (HxWxD) | 70 x 48 x 40 cm |
| Weight | 50 kg |
| CCCN Code | Tariff 90268020 |
Setafoam Dual Twin Foam Test Baths Applications
- Petrochemical, Research,
- Refineries,
- testing laboratories,
- Lubricants
